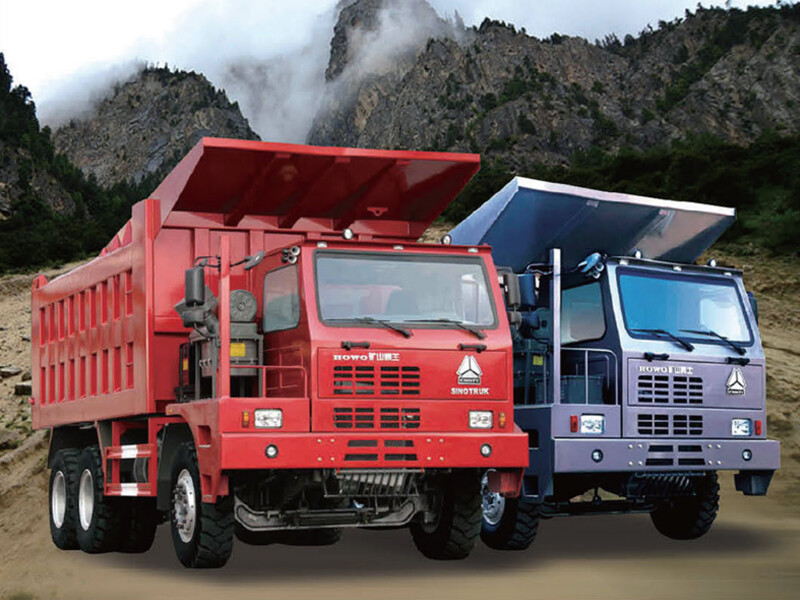

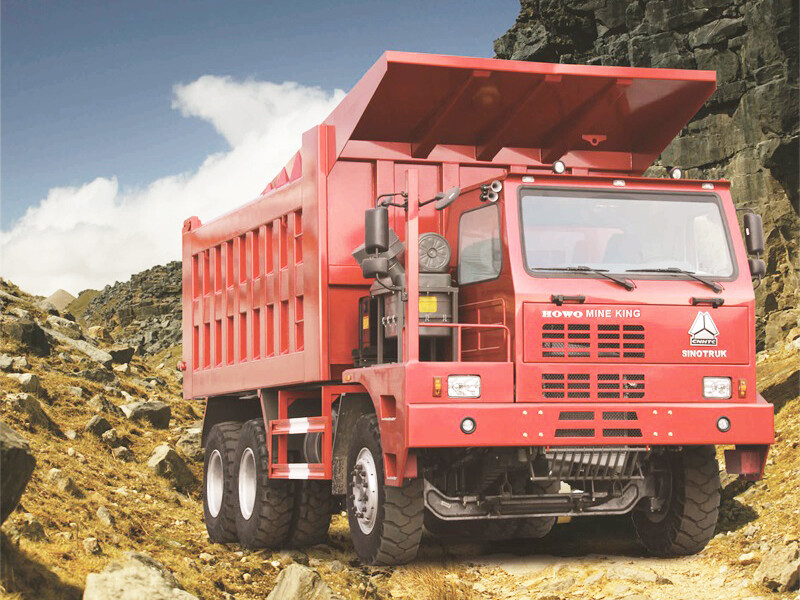

Mining Truck
‹
›
PRODUCT DESCRIPTION
| HOWO Mine King series Tipper basic configurations and main technical parameters （6×4，Euro Ⅱ） | |||
| Representative vehicle model | ZZ5707S3640AJ | ZZ5707S3840AJ | |

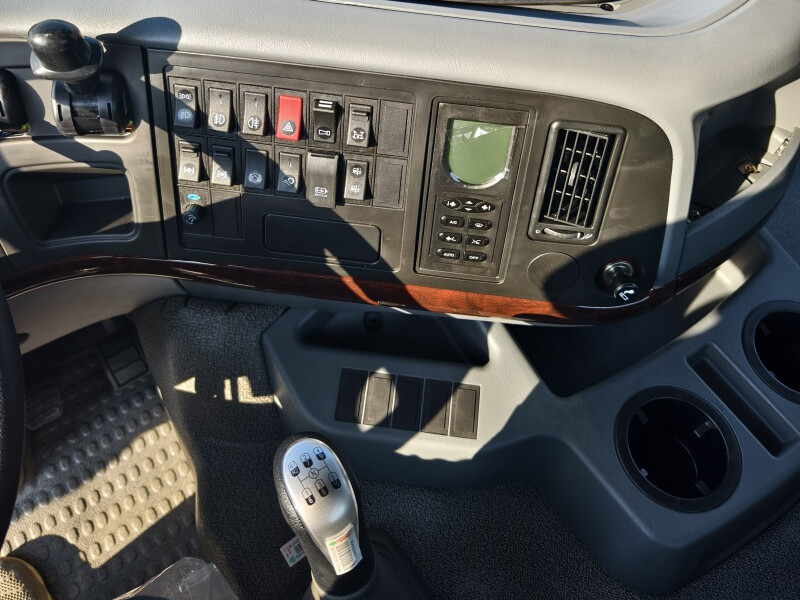

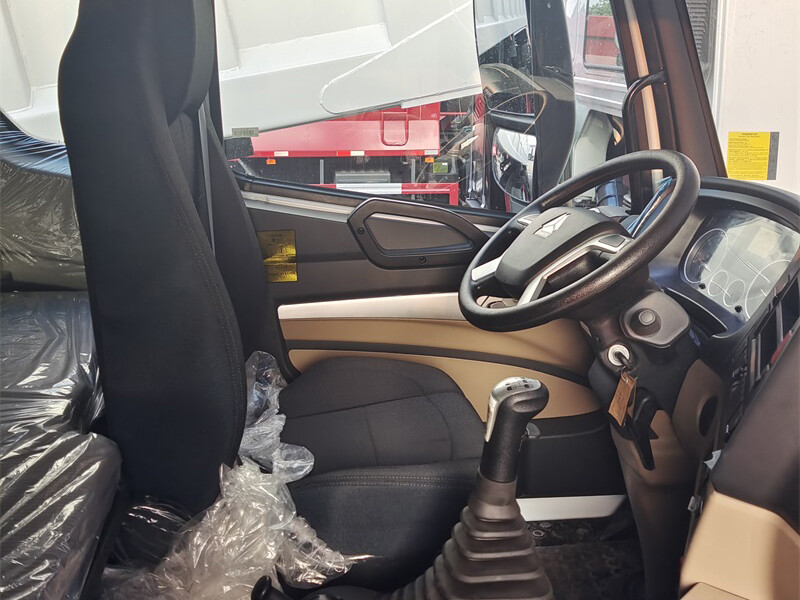

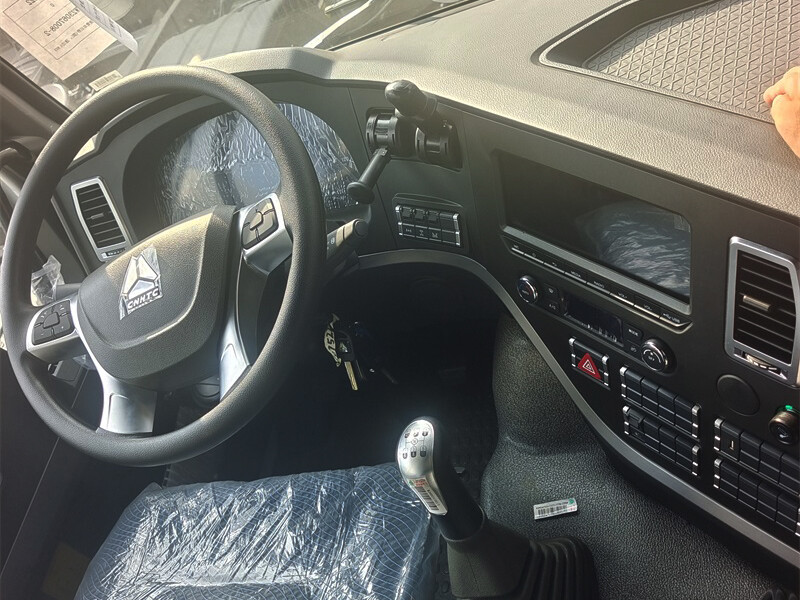

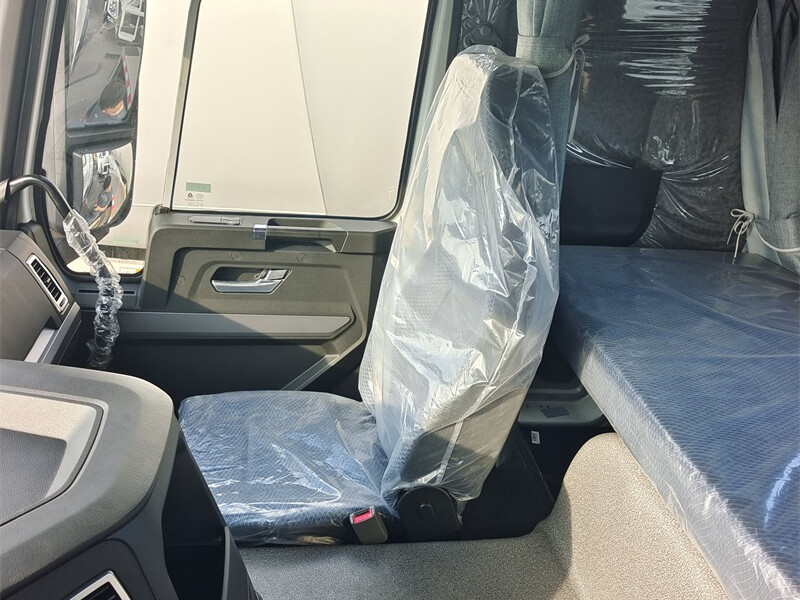

| Cab | Model | HW7D | |
| Type | Sketch covering, grand view and single side reinforced mine truck dedicated cabCab. Suspension is helical spring with shock absorber, air conditioner and heater. Heating system fit for cold areas is optional. | ||
| Engine | Model | WD615.47 | WP12.400E201 |
| Rated Power kW/rpm | 273/2200 | 294/2200 | |
| Maximum torque Nm/rpm | 1500/1100-1600 | 1350/1900 | |
| Displacement L | 9.726 | 11.596 | |
| Type | Six cylinders inline, two valve, supercharge postposition, superchage intercooler | ||
| Clutch | Standard 430A pull-type diaphragm spring Clutch, Hydraulic control air assisted. | ||
| Transmission | HW19710, Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction. with HW70 PTO. HW19710T Transmission with synchronizer is optional. | ||
| Front Axle | HF12 one-piece-casting I beam rigid boxing-style mine dedicated front axle | ||
| Drive Axle | AC26double reduction (central reduction+wheel reduction), one-piece-casting axle housing, with wheel and interaxle differential lock, speed ratio: 10.47; Optional 8.51 | ||
| Suspension | Front and rear leaf spring suspension, rear Suspension is integral type equalizing suspension | ||
| Steering system | ZF8098 steeringbox, ZF steerig pump and steering reservoir, system pressure 18MPa | ||
| Braking system | Service brake: dual-circuit air pressure brake; parking brake: spring storage energy without air; auxilliary brake: Engine exhaust braking | ||
| Electrical system | Single wire system, negative earth, voltage: 24V; generator: 1540W; starter: 7.5kW; battery: 12V/180Ah, 2 pieces, Engine air inletel ectric heating. | ||
| Tyre | 14.00-25（Optional 14.00R25） | ||
| Tank volume L | D-shape500L | ||
| Kerb weight kg | 17260 | 17300 | |
| Gross Mass kg | 70000 | 70000 | |
| Rated load kg | 52500 | 52460 | |
| External dimensions (length × width× height) mm | 7600×3326×3310 | 7800×3326×3310 | |
| Wheelbase mm | 3600+1500 | 3800+1500 | |
| Front/rear overhang mm | 1500/1000 | 1500/1000 | |
| Wheel track(front/rear) mm | 2741/2520 | 2741/2520 | |
| Minimum ground clearance（under front axle） mm | 340 | 340 | |
| Approach/departure angle ° | 32/40 | 32/40 | |
| Maximum speed km/h | 50 | 50 | |
| Max climbing ability % | 42 | 42 | |
| Minimum turning diameter m | 22 | 22 | |
| Container size (length x width × height) mm | 5900×3100×1800 | 5900×3100×1800 | |
| Container volume m3 | 32 | 32 | |
| Notice:1. parameters in the table are theoretical reference data when the truck is running or working in good road condition. Actual data are subject to practical working environment of the truck and the driver's operation. | |||
| 2. Due to product improvement and technical progress, our company reserves the right to modify the parameters at all times without prior notice. | |||
