Tractor
‹
›
PRODUCT DESCRIPTION
| Golden Prince Tractor basic configurations and main technical parameters （4×2，Euro Ⅱ，midium length Cab） | |||
| Representative vehicle model | ZZ4181M3611W | ZZ4181N3611W | |
| Cab | Model | HW76 | |

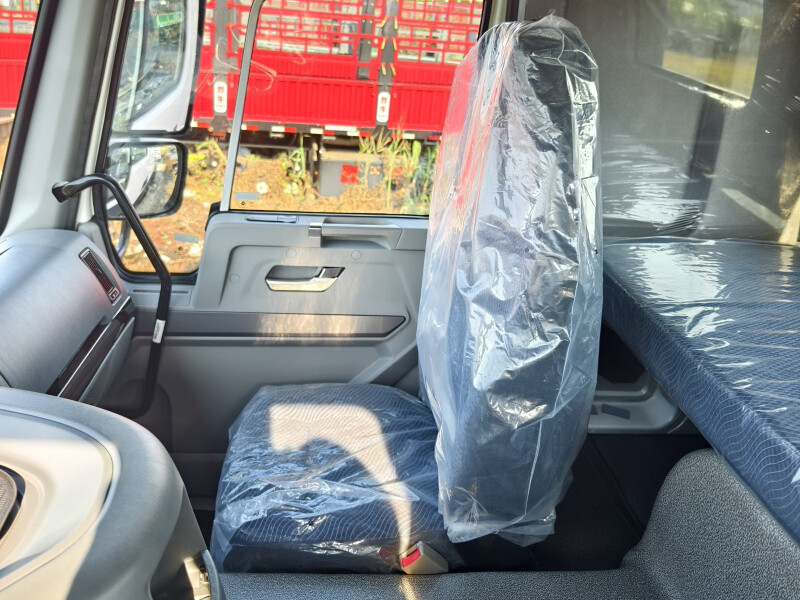

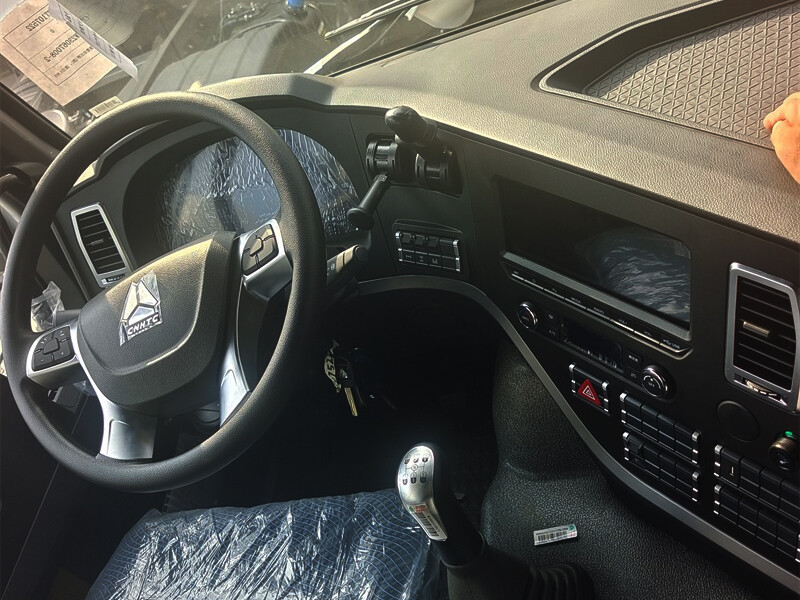

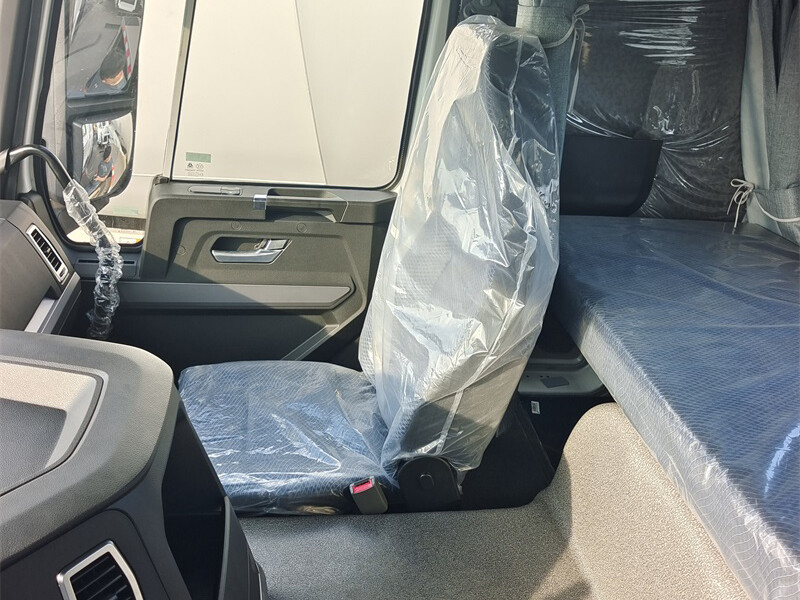

| Type | Midium length Cab, single berth, up/down and front/back adjustable steering wheel, double-locking safety belt, exterior sun visor. | ||
| Engine | Model | WP12.400E201 | WD615.69 |
| Rated Power kW/rpm | 294/2200 | 247/2200 | |
| Maximum torque Nm/rpm | 1350/1900 | 1350/1100-1600 | |
| Displacement L | 11.596 | 9.726 | |
| Type | Six cylinders inline, two valve, supercharge postposition, superchage intercooler | ||
| Clutch | Φ430 diaphragm spring Clutch, hydraulic control air PTO | ||
| Transmission | SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft ,auxiliary transmission with planetary reduction. WD615.87, WD615.69 standard HW15710 | ||
| Front Axle | HF7, rated load of 7t, drum-type | ||
| Drive Axle | ST16 double reduction axle, speed ratio：4.42、4.8 | ||
| Suspension | Front and rear leaf spring suspension+shock absorber+transverse stabilizer | ||
| Steering system | ZF8098 steeringbox is recommended for exported trucks | ||
| Braking system | Service brake: dual-circuit air pressure brake; parking brake: spring storage energy without air; auxilliary brake: Engine exhaust braking. With ABS and optional auto clearance adjusting arm. | ||
| Electrical system | Double wire system, negative earth,voltage：24V；generator: 1540W; starter: 7.5kW; battery: 12V/165Ah, 2 pieces | ||
| Transfer case | ZQC1200 | ||
| Tyre | 12.00R20; Optional: 315/80R22.5 12R22.5 | ||
| Tank volume L | 350 | ||
| Kerb weight kg | 6620 | 6620 | |
| Gross Mass kg | 18000 | 18000 | |
| Authorized maximum towed mass kg | 35000 | 37600 | |
| permissible fifth wheel load kg | 11250 | 11250 | |
| External dimensions (length × width×height) mm | 5950×2490×3070 | 5950×2490×3070 | |
| Wheelbase mm | 3600 | 3600 | |
| Front/rear overhang mm | 1320/1030 | 1320/1030 | |
| Wheel track (front/rear) mm | 2041/ 1850 | 2041/ 1850 | |
| Minimum ground clearance mm | 314 | 314 | |
| Approach/departure angle ° | 20.5/45 | 20.5/45 | |
| Maximum speed km/h | 90 | 90 | |
| Max hillholding ability % | 20 | 20 | |
| Minimum turning diameter m | 14 | 14 | |
| Clearance of fifith wheel joint surface from the ground (unloaded/loaded) mm | 1370/1340 | 1370/1340 | |
| Front/rear turning radius mm | 2250/1800 | 2250/1800 | |
| Traction pin specification | 50#（ 2”） /90#（3.5”） | 50#（ 2”） /90#（3.5”） | |
| Remark | |||
| Notice:1. parameters in the table are theoretical reference data when the truck is running or working in good road condition. Actual data are subject to practical working environment of the truck and the driver's operation. | |||
| 2. Due to product improvement and technical progress, our company reserves the right to modify the parameters at all times without prior notice. | |||
