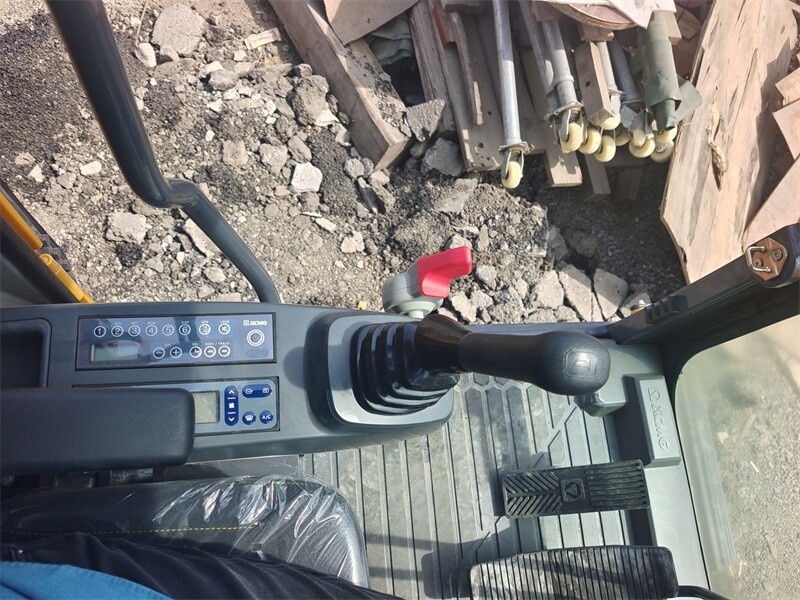

| XCMG Excavator XE215C |
| Item | Main part: |
|

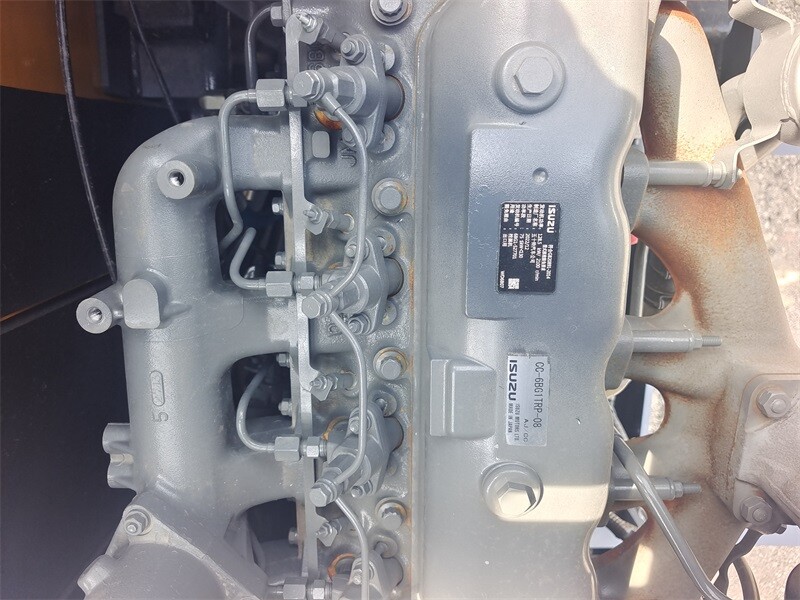

| 1 | Engine： | ISUZU 6BG1TRP |
| 2 | Rated power/speed: | 128.5KW/2100rpm |
| 3 | Maximum torque/speed: | 637.9/1800NM |
| 4 | Main Pump: | Korea Kawasaki |
| 5 | Main Valve: | XCMG |
| 6 | Track Motor: | Korea Doosan |
| 7 | Swing Motor: | Japan Kawasaki |
| 8 | AC: | TAYBO（SHANGHAI） |

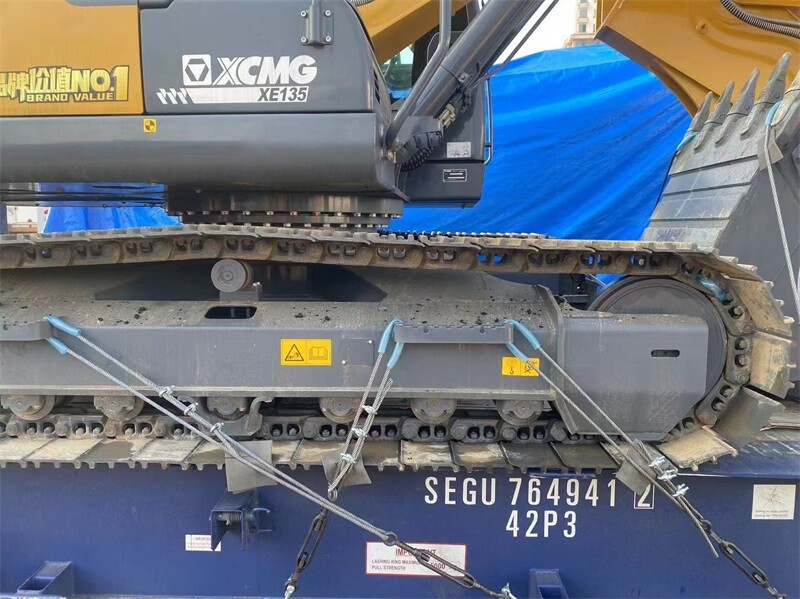

| 9 | Sprocket, idler, carrier roller, track roller and track: | XCMG |

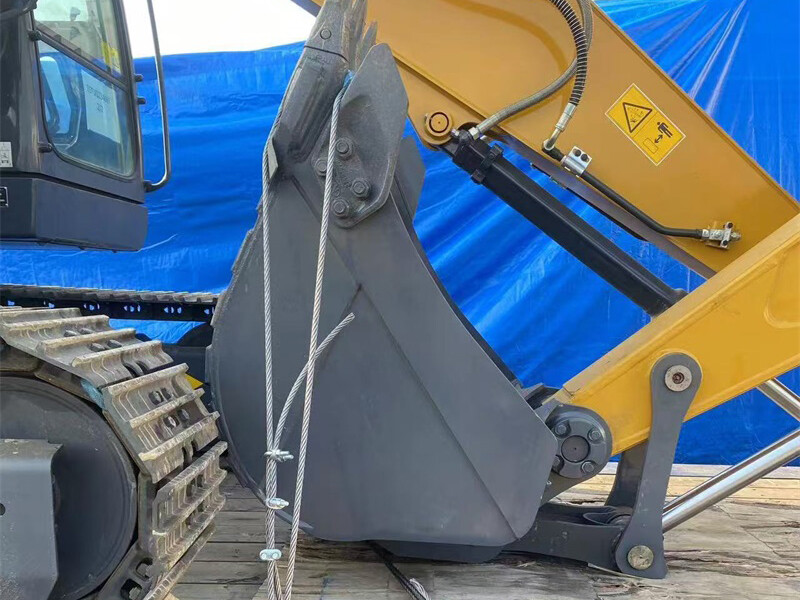

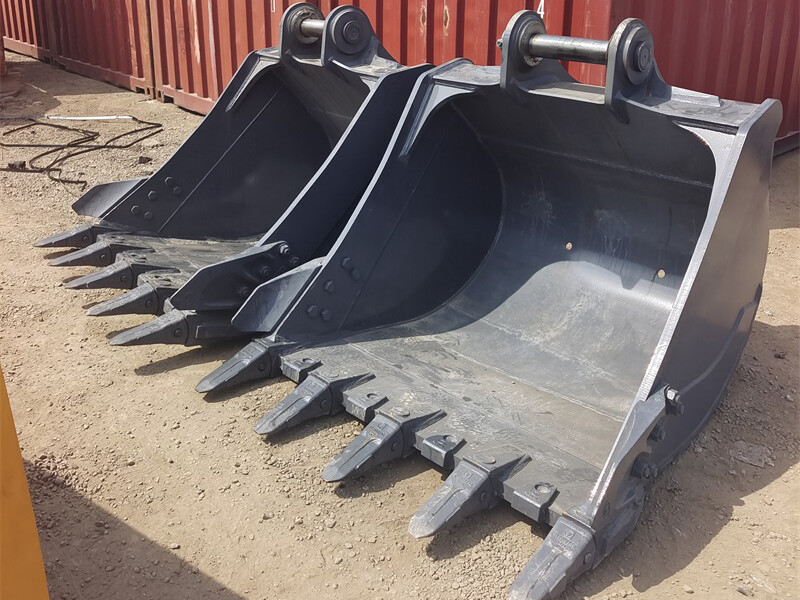

| 10 | Standard bucket： | 1.0cubic |
| Item | Appearance size: |
|
| 11 | Overall length: | 9625mm |
| 12 | Overall width: | 2890mm |
| 13 | Overall height: | 2985mm |
| 14 | Width of platform: | 2830mm |
| 15 | Track length: | 4157mm |
| 16 | Overall width of chassis: | 2890mm |
| 17 | Track shoe width: | 600mm |
| 18 | Wheel base of crawler: | 3366mm |
| 19 | Track gauge: | 2290mm |
| 20 | Counterweight clearance: | 1050mm |
| 21 | Min. ground clearance: | 486mm |
| 22 | Min. tail swing radius: | 2844mm |
| 23 | Track height: | 942mm |
| Item | Working scope: |
|
| 24 | Max. digging height: | 9620mm |
| 25 | Max. dumping height: | 6780mm |
| 26 | Max. digging depth: | 6680mm |
| 27 | Maximum depth cut for 2240mm(8 ft) level bottom: | 6320mm |
| 28 | Max. Vertical digging depth: | 5715mm |
| 29 | Max. digging radius: | 9940mm |
| 30 | Min. swing radius: | 3530mm |
| 31 | Length of boom: | 5680mm |
| 32 | Length of arm: | 2910mm |
| Opitional: | With Breaker line |
| Other: | Equipped |
