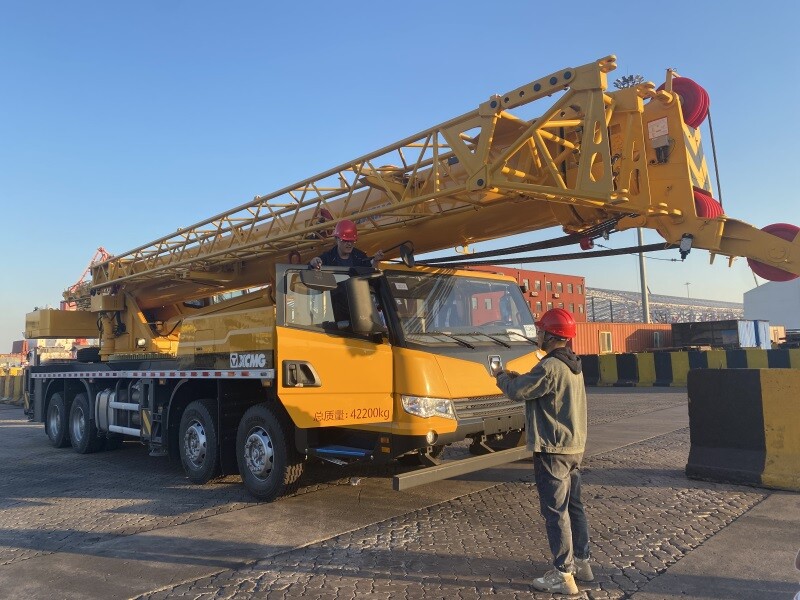

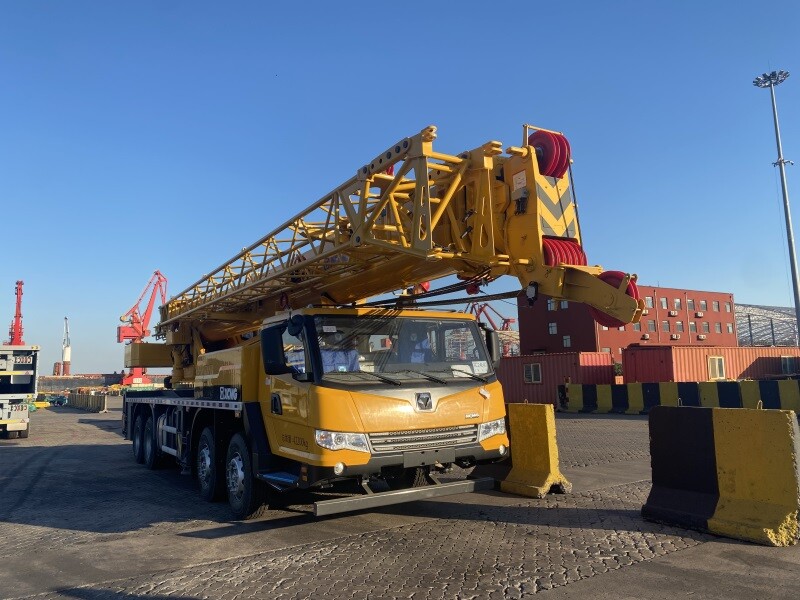

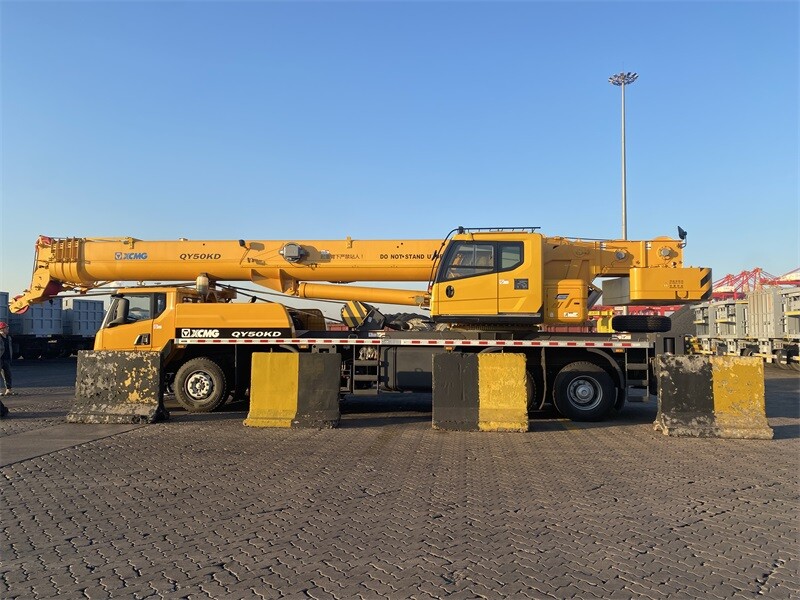

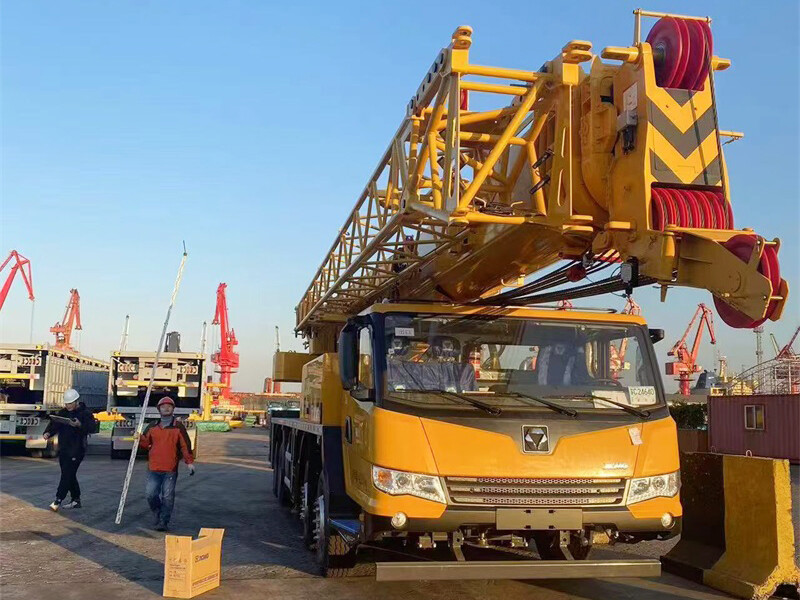

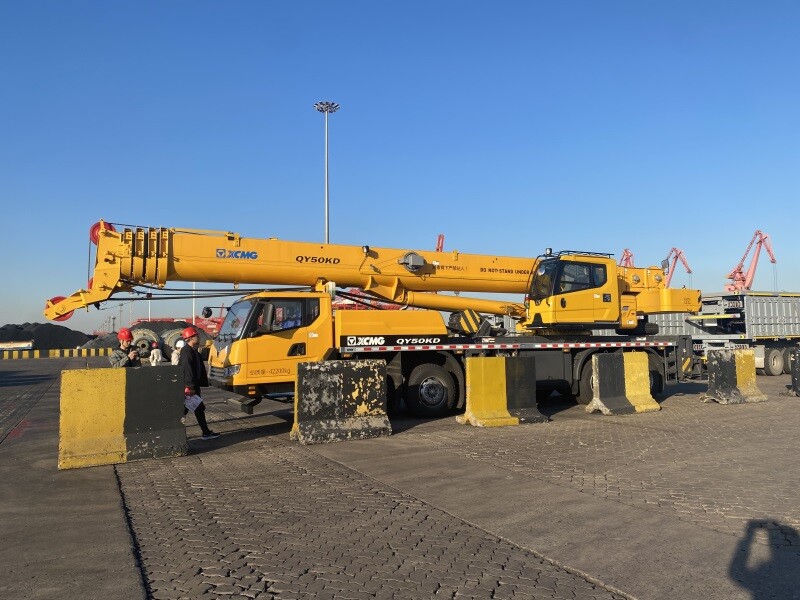

Wheel Crane
Location: HOME - XCMG - Wheel Crane - Crane

‹

  • Crane
  • Crane
  • Crane
  • Crane
  • Crane
  • Crane

›

Crane
Tel: +86-15965772070
WhatsApp: +86-15965772070
Email: sinosea@ssvh.com.cn
Email: maddy@ssvh.com.cn
Email: cecilia@ssvh.com.cn
CONTACT US
MESSAGE
PRODUCT DESCRIPTION

CategoryItemUnitParameter
DimensionsOutline size (lengthch × width × height)mm14030×2800×3630
Wheel basemm1470/4300/1350
Track (Front/Rear)mm2304/2075
Front/Rear overhangmm2383/2145 or 2396/2145
Front/Rear extensionmm2137/285 or 2124/285
WeightMaximum allowable total masskg42200
Axle load1st and 2nd axlekg16200
3rd and 4th axlekg26000
PowerEngine model
D10.38-50 国VsC10E380Q5 国V
Engine rated power/rpmkW/(r/min)276/2000279/1900
Max.net power/rpmkW/(r/min)274/2000273/1900
Engine rated torque/rpmNm/(r/min)1560/1200-15001620/1100-1400
TravelMax.travel speedkm/h8080
Min.travel speedkm/h2～3
Min.turning diameterm24
Min.turning diameter at boom tipm29.2
Min.ground clearancemm327
Approach angle
11
Departure angle015
Braking distance (at 30 km/h)m≤10
Max.grade ability%45
Fuel consumption per 100 kmL40
NoiseExterior noise leveldB(A)≤88
Noise level at seated positiondB(A)≤90
CategoryItemUnitParameter
Main performanceMax.total rated lifting capacityt50
Min.rated working radiusm3
Turning radius at turntable tailmm3900
Max.load momentBase boomkN.m2009
Fully-extended boomkNm1129
Fully-extended boom+JibkN.m620
Outrigger spanLongitudinalm6.1
Lateralm7.1
Hoist heightBase boomm11.9
Fully-extended boomm44
Fully-extended boom+Jibm58.1
Boom lengthBase boomm11.4
Fully-extended boomm43.5
Fully-extended boom+Jibm59.5
Jib offset angle00, 15, 30
Working speedBoom raising times≤40
Boom fully extended times≤90
Max.slewing speedr/min≥2.0
Outriggerextending and retracting timeOutrigger beamRetractings≤30
Extendings≤35
Outrigger jackRetractings≤35
Extendings≤40
Hoisting speed (single line, 4th layer, no load)Mainwinchm/min≥130
Auxiliary winchm/min≥130
NoiseExterior noiseleveldB(A)≤124
Noise level at seated positiondB(A)≤90
